tbb::flow::interface6::buffer_node< T, A > Class Template Reference

Forwards messages in arbitrary order. More...

#include <flow_graph.h>

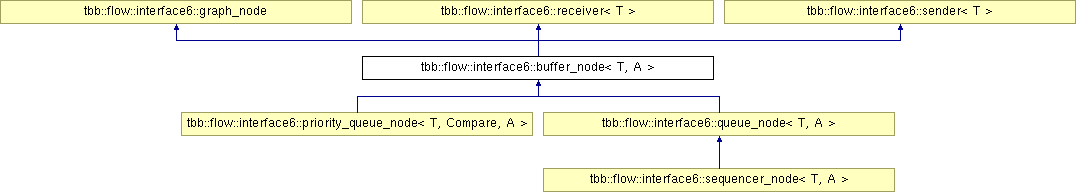

Inheritance diagram for tbb::flow::interface6::buffer_node< T, A >:

List of all members.

Public Types
typedef T	input_type
	The input type of this receiver.
typedef T	output_type
	The output type of this sender.
typedef sender< input_type >	predecessor_type
	The predecessor type for this node.
typedef receiver< output_type >	successor_type
	The successor type for this node.
typedef buffer_node< T, A >	my_class
Public Member Functions
	buffer_node (graph &g)
	Constructor.
	buffer_node (const buffer_node &src)
	Copy constructor.
bool	register_successor (receiver< output_type > &r)
	Adds a new successor.
bool	remove_successor (receiver< output_type > &r)
	Removes a successor.
bool	try_get (T &v)
	Request an item from the buffer_node.
bool	try_reserve (T &v)
	Reserves an item.
bool	try_release ()
	Release a reserved item.
bool	try_consume ()
	Consumes a reserved item.
Protected Types
typedef size_t	size_type
typedef internal::aggregating_functor< my_class, buffer_operation >	my_handler
	reg_succ
	rem_succ
	req_item
	res_item
	rel_res
	con_res
	put_item
	try_fwd_task
	WAIT = 0
	SUCCEEDED
	FAILED
enum	op_type {   reg_succ, rem_succ, req_item, res_item,   rel_res, con_res, put_item, try_fwd_task }
enum	op_stat { WAIT = 0, SUCCEEDED, FAILED }
Protected Member Functions
virtual void	handle_operations (buffer_operation *op_list)
task *	grab_forwarding_task (buffer_operation &op_data)
bool	enqueue_forwarding_task (buffer_operation &op_data)
virtual task *	forward_task ()
	This is executed by an enqueued task, the "forwarder".
virtual void	internal_reg_succ (buffer_operation *op)
	Register successor.
virtual void	internal_rem_succ (buffer_operation *op)
	Remove successor.
virtual void	internal_forward_task (buffer_operation *op)
	Tries to forward valid items to successors.
virtual void	internal_push (buffer_operation *op)
virtual void	internal_pop (buffer_operation *op)
virtual void	internal_reserve (buffer_operation *op)
virtual void	internal_consume (buffer_operation *op)
virtual void	internal_release (buffer_operation *op)
task *	try_put_task (const T &t)
	receive an item, return a task *if possible
void	reset ()
void	reset_receiver ()
Protected Attributes
internal::round_robin_cache< T, null_rw_mutex >	my_successors
task *	my_parent
bool	forwarder_busy
internal::aggregator< my_handler, buffer_operation >	my_aggregator
Friends
class	internal::forward_task_bypass< buffer_node< T, A > >
class	internal::aggregating_functor< my_class, buffer_operation >
class	run_and_put_task
	put item to successor; return task to run the successor if possible.
class	internal::broadcast_cache
class	internal::round_robin_cache
Classes
class	buffer_operation

---

Detailed Description

template<typename T, typename A = cache_aligned_allocator<T>>
class tbb::flow::interface6::buffer_node< T, A >

Forwards messages in arbitrary order.

---

Member Function Documentation

template<typename T, typename A = cache_aligned_allocator<T>>

bool tbb::flow::interface6::buffer_node< T, A >::register_successor

(

receiver< output_type > &

r

)

[inline, virtual]

Adds a new successor.

Adds successor r to the list of successors; may forward tasks.

Implements tbb::flow::interface6::sender< T >.

template<typename T, typename A = cache_aligned_allocator<T>>

bool tbb::flow::interface6::buffer_node< T, A >::remove_successor

(

receiver< output_type > &

r

)

[inline, virtual]

Removes a successor.

Removes successor r from the list of successors. It also calls r.remove_predecessor(*this) to remove this node as a predecessor.

Implements tbb::flow::interface6::sender< T >.

template<typename T, typename A = cache_aligned_allocator<T>>

bool tbb::flow::interface6::buffer_node< T, A >::try_consume

(

)

[inline, virtual]

Consumes a reserved item.

true = item is removed from sender and reservation removed

Reimplemented from tbb::flow::interface6::sender< T >.

template<typename T, typename A = cache_aligned_allocator<T>>

bool tbb::flow::interface6::buffer_node< T, A >::try_get

(

T &

v

)

[inline, virtual]

Request an item from the buffer_node.

true = v contains the returned item
false = no item has been returned

Reimplemented from tbb::flow::interface6::sender< T >.

template<typename T, typename A = cache_aligned_allocator<T>>

bool tbb::flow::interface6::buffer_node< T, A >::try_release

(

)

[inline, virtual]

Release a reserved item.

true = item has been released and so remains in sender

Reimplemented from tbb::flow::interface6::sender< T >.

template<typename T, typename A = cache_aligned_allocator<T>>

bool tbb::flow::interface6::buffer_node< T, A >::try_reserve

(

T &

v

)

[inline, virtual]

Reserves an item.

false = no item can be reserved
true = an item is reserved

Reimplemented from tbb::flow::interface6::sender< T >.

---

The documentation for this class was generated from the following file:

• flow_graph.h

---
