An executable node that acts as a source, i.e. it has no predecessors. More...
#include <flow_graph.h>

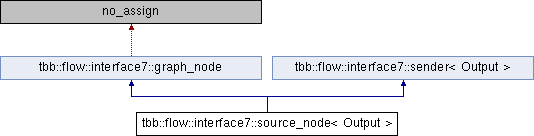

Inheritance diagram for tbb::flow::interface7::source_node< Output >:
Public Types | |
| typedef Output | output_type |
| The type of the output message, which is complete. | |
| typedef receiver< Output > | successor_type |
| The type of successors of this node. | |
 Public Types inherited from tbb::flow::interface7::sender< Output > | |
| typedef Output | output_type |
| The output type of this sender. | |
| typedef receiver< Output > | successor_type |
| The successor type for this node. | |
Public Member Functions | |
| template<typename Body > | |
| source_node (graph &g, Body body, bool is_active=true) | |
| Constructor for a node with a successor. | |
| source_node (const source_node &src) | |
| Copy constructor. | |
| ~source_node () | |
| The destructor. | |
| void | set_name (const char *name) |
| bool | register_successor (receiver< output_type > &r) |
| Add a new successor to this node. | |
| bool | remove_successor (receiver< output_type > &r) |
| Removes a successor from this node. | |
| bool | try_get (output_type &v) |
| Request an item from the node. | |
| bool | try_reserve (output_type &v) |
| Reserves an item. | |
| bool | try_release () |
| Release a reserved item. More... | |
| bool | try_consume () |
| Consumes a reserved item. | |
| void | activate () |
| Activates a node that was created in the inactive state. | |
| template<typename Body > | |
| Body | copy_function_object () |
| Public Member Functions inherited from tbb::flow::interface7::graph_node | |
| graph_node (graph &g) | |
Protected Member Functions | |
| void | reset () |
| resets the node to its initial state | |
Friends | |
| class | internal::source_task_bypass< source_node< output_type > > |
Additional Inherited Members | |
| Protected Attributes inherited from tbb::flow::interface7::graph_node | |
| graph & | my_graph |
| graph_node * | next |
| graph_node * | prev |
Detailed Description
template<typename Output>
class tbb::flow::interface7::source_node< Output >
An executable node that acts as a source, i.e. it has no predecessors.
Member Function Documentation
template<typename Output >
|
inlinevirtual |
Release a reserved item.
true = item has been released and so remains in sender, dest must request or reserve future items
Reimplemented from tbb::flow::interface7::sender< Output >.
The documentation for this class was generated from the following file:
